How to install security cameras?

A recent study found that over 60% of property owners feel that a surveillance system is an important component of the overall security of their property. How to install security cameras involves careful planning, optimal camera positioning, secure mounting, and efficient wiring installations, along with comprehensive testing to ensure effective surveillance and complete coverage.

If this is not understood, users may experience blind spots, reduced visibility, and inadequate surveillance. This includes installation instructions, placement considerations, environmental factors, and maintenance protocols to effectively and reliably cover the area with cameras.

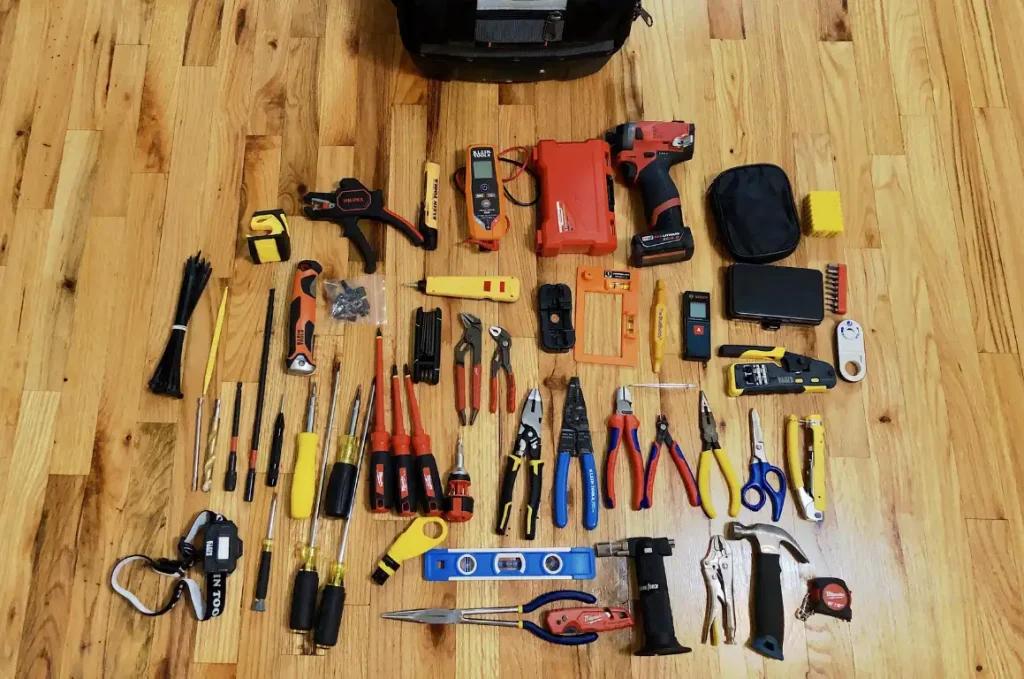

Essential Tools and Materials Needed for Security Camera Installation

Prior to installing security cameras, put together the right tools and materials to help with the proper location and secure installation.

1. Measuring Tools

• Measuring Tape: To Verify the Mounting Height and Distance to The Camera
• Laser Level: For Mounting the Camera Straight and Ensuring Proper Alignment.
• Stud Finder: A Tool that Is Used to Locate Beams and Pipes Within a Wall for Safe Drilling

2. Drilling and Mounting Tools

• Drill: A Machine for Puncturing Holes Into Material
• Power Drill: A Machine that Has a Motor to Create Holes in An Object
• Drill Bits Set: These Include a Variety of Bits for Different Materials Such as Concrete, Wood, or Drywall
• Screwdriver Set: Used to Adjust the Mounting Bracket
• Wall Anchors and Screws: As Per the Type of Surface and Size of The Hole Required

3. Cable Management Supplies

• Fish Tape or Snake Made of Fish Cable: Used for Pulling Wires Through Wall Cavities or Conduits
• Cable Clips/staples: To Attach Wires to the Wall
• Conduit Pipes: For Outdoor Wiring to Shield from Weather and Physical Harm
• Cable Ties: Help to Manage and Tie Wires Together

4. Safety Equipment

• Sturdy Ladder: Used for Working at A Height of 8 to 12 Feet
• Safety Gloves: To Protect Hands While Drilling and Wiring
• Drilling Dust and Debris Protection Goggles: To Protect Eyes from Dust and Debris While Drilling

5. Testing Tools

• Multimeter: To Test Power Connections and Voltage
• Network Cable Tester: It Is Used to Determine Whether Wired Connections Are Working Properly or Not
• Monitor/laptop: To See Live Camera Feed and To Move the Camera Around

Step-by-Step Guide to Installing Security Cameras

Following are the step-by-step instructions for installing security cameras properly:

1. Assess Security Risks and Coverage Requirements

The first step is to pinpoint the areas to be monitored. These can often be the priority areas such as entry doors, garages, driveways, pathways, and rear access points.

Make an elementary map of the land and label key areas. The planning process enables the development of full coverage and minimisation of gaps in surveillance.

Coverage Planning and Risk Identification

The most important step in any professional security camera installation is developing a security plan that matches the property’s layout and protection requirements. Every area should be carefully assessed to identify blind spots, low-light zones, vulnerable access points, and high-traffic areas. Proper camera placement ensures complete coverage, improves monitoring effectiveness, and helps eliminate gaps that could compromise the overall security system.

2. Define Monitoring Objectives

All cameras should have a specific function. There are cameras that are focused inwards on entrances or cameras that cover a larger outdoor area.

Identify the type of cameras for each access point, vehicle and pedestrian activity, or property boundary.

3. Gather Measurements Before Installation

Prior to installation, measure distances, mounting heights, and possible cable routes. Best estimates are helpful in many planning projects in terms of cost estimation, material estimation, volume estimation, and project planning support. Similarly, planning methods can also be used to develop more accurate monitoring layouts and more efficient installations.

4. Select Appropriate Mounting Locations

Select sites where there is good sight with minimal obstruction. Do not put cameras behind trees, decorative features, signs, or structures that may block camera views. Stable mounting surfaces for long-lasting performance.

5. Install Mounting Hardware

Use a marking tool to mark the location of drill holes. Follow these steps:

A secure mount allows for a consistent image and prevents image movement from wind and vibration.

6. Select Appropriate Mounting Locations

Carefully plan cable paths before installing cables. Typical routing sites are:

Cable management provides proper protection of connections and promotes system reliability.

7. Adjust Camera Angles

Each camera should be set up so that it’s able to photograph the desired space. Focus on:

Do not block all of the sky with unnecessary coverage since this will decrease the amount of detail that can be seen in surveillance.

8. Verify System Performance

Once the system is set up, check out live video and recorded video. Check:

Adjustments (if needed) prior to completion of installation.

Where Should Security Cameras Be Installed?

The following are the key areas where security cameras should be installed:

1. Entry Doors and Access Points

The activity is mainly concentrated around the entrances/exits. These locations have cameras that are used for surveillance of movement in and out of the property. Approach and entry areas should be covered.

2. Driveways and Vehicle Areas

Frequent traffic, including cars and foot traffic, occurs on driveways. Install cameras at points of vehicle access, parking areas, and garage entrances.

3. Rear Access Locations

Alternative access routes could be provided in backyards or side paths. These areas can be monitored to help increase visibility of the property and to create consistent coverage.

4. Interior Traffic Zones

Indoor cameras are most beneficial in tracking traffic from room to room or between primary rooms. Staircases, hallways, and shared areas can provide more visibility than individual rooms.

Indoor vs Outdoor Camera Placement Requirements

1. Indoor Camera Positioning Priorities

The main purpose of the indoor camera is to highlight movement, not necessarily cover all the areas. Monitoring opportunities are frequently found along hallways, stairways, entries and shared areas. Clear sight lines enable it to see through and eliminate extra footage.

2. Outdoor Camera Placement Considerations

The outdoor cameras are usually used for a wider area and are subject to different environmental conditions.

Perimeter boundaries, garages, gates, walkways, and driveways frequently need to be monitored. Installation should take into consideration the weather and seasonal conditions.

3. Height and Angle Differences for Indoor and Outdoor Locations

For indoor installations, the identification and tracking of movement are the main priorities. In general, outdoor installations will have to compromise between coverage and visibility. The height of the camera should aid the task of monitoring and ensure adequate image information.

How High Should Security Cameras Be Mounted?

There are various installations that set the cameras anywhere between 8′ and 12′ up. This height can often provide a compromise between visibility, coverage, and tamper resistance and still provide a useful amount of surveillance footage.

The style of mounting will vary, depending upon the objective of the monitoring. A camera that is for monitoring property entrance may need to be a different height than a camera monitoring a driveway.

Understanding Wired and Wireless Installation Approaches

1. Wired Installation Fundamentals

Wired systems are connected with power and communication via physical items. The installations typically focus on the reliability of connections and data transfer. However, they tend to require more cable planning.

2. Wireless Installation Fundamentals

Wireless systems use network communication instead of dedicated communications cables. Often, placement flexibility is higher, but network reliability is an important factor.

Factors That Affect Surveillance Performance

1. Weather and Environmental Conditions

Outdoor surveillance systems will be working in a changing environment outdoors all year long. Weather and temperature fluctuations, rain, snow, dust, and wind may have an impact on the visibility and overall performance. Environment interference can be minimised by proper placement.

2. Lighting Conditions

Lighting is a very important factor affecting image quality. Check the camera positions at various times of the day for any visibility issues that may arise, such as shadows, glare or reflections.

3. Landscaping and Physical Obstructions

Camera views may be obstructed by trees and shrubs in the future, as may be fences and decorative structures. Frequent checks ensure good flow of sightlines and coverage.

4. Network Stability

Nowadays, many surveillance systems are network-connected. Consistent communication means stable communication that can be recorded and accessed remotely.

What Should Be Checked After Installation?

1. Image Quality Assessment

Take a look at the videos during the day and at night. Report on sharpness, visibility and general uniformity of the picture in all areas being monitored.

2. Motion Detection Accuracy

Test movement throughout the coverage area. Make sure that the system will respond to the activity in an appropriate manner and not produce too many false events.

3. Mounting Stability

Check mounting hardware for proper installation. Stable mounting ensures that viewing angles can be maintained and there is less image distortion due to movement.

4. Ongoing Maintenance Requirements

The effectiveness of surveillance will be maintained through regular maintenance.

Monitor:

Routine inspections enable potential performance issues to be identified before they have an impact on performance.

Why Strategic Planning Improves Surveillance Results

Increasing the number of cameras is not a successful way to reach a successful surveillance.Thoughtful planning is the key to a successful surveillance, not just adding more cameras.

When designing a system, designers should take into account coverage objectives, environmental factors, camera placement and maintenance. With each camera having its own function, the entire surveillance network is more efficient and can be managed better.

Conclusion

Understanding how to install security cameras isn’t just about mounting them on walls and ceilings. The installation process is complex and demands careful planning, correct positioning, connection and periodic testing.

Users can achieve reliable surveillance coverage, by analyzing their coverage requirements, choosing their right locations, taking into account environmental conditions, and operating the system over time. It’s not the number of cameras that makes a good surveillance system, it’s the quality of each camera to complement the surveillance system.

FAQs

Q. What Is the Best Step when Installing Security Cameras?

Planning can be the most crucial step. Having a clear coverage strategy enables specifying camera locations, camera angles and monitoring priorities. With proper planning, blind spots will be minimized and surveillance will become more effective. It also can help reduce installation errors that could need changes down the road.

Q. Should Indoor and Outdoor Security Cameras Be Placed Differently?

Yes. Indoor cameras tend to concentrate on movement from one area to another, like hallways and entranceways. The outdoor cameras generally intend to cover areas that are bigger and need to take into consideration the weather, lighting variations and environmental barriers. The placement specifications are dependent on the monitoring objectives and environment.
